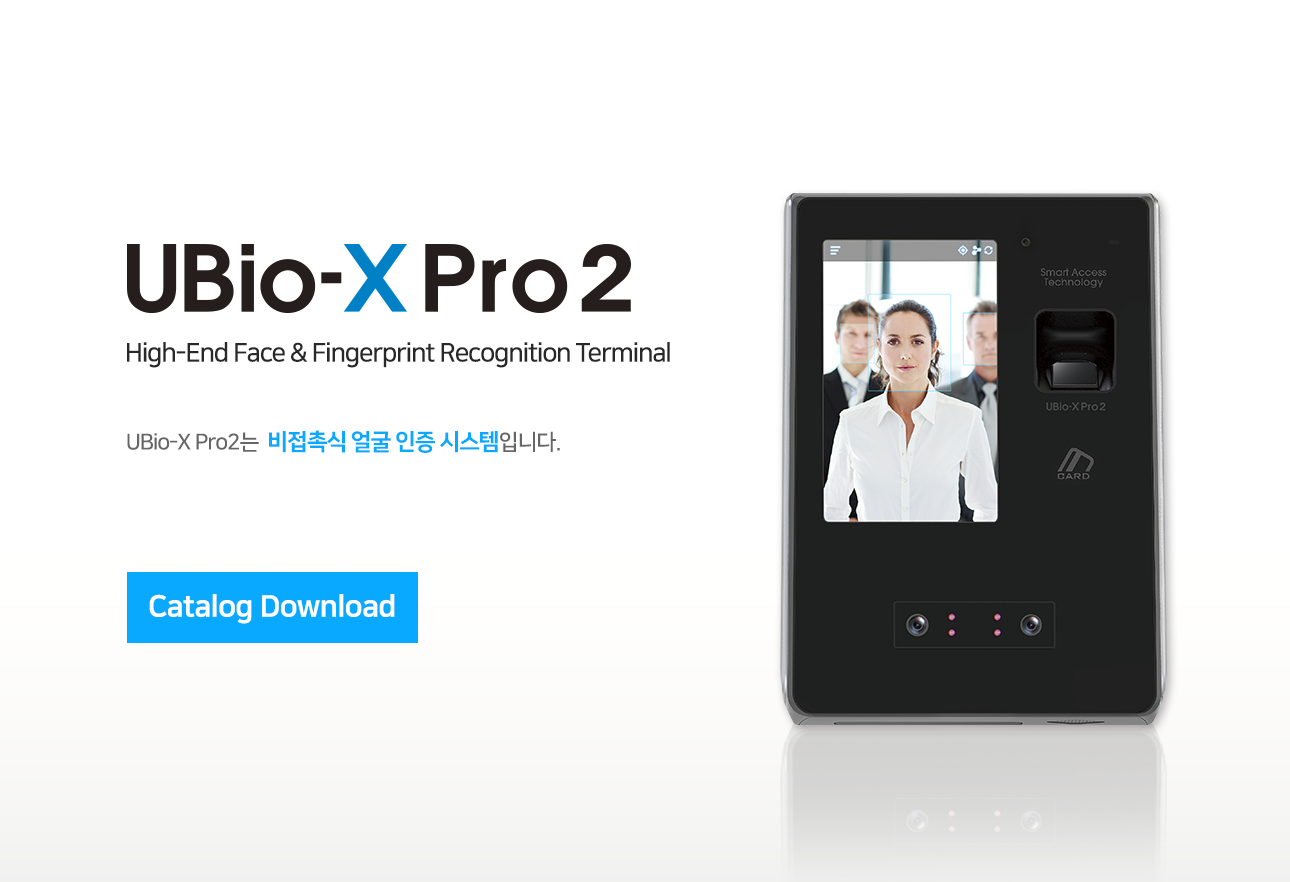

HOME > Products > UBio-X Pro 2
Specification
Authentication Method Biometric
Dust/ Water Resistance X
Memory Max Users 500,000
Fingerprints (Templates) FP : 500,000 (1:1)
100,000 (1:N)
Face : 20,000 (1:1)
20,000 (1:N)
Logs 10,000,000
Images 20,000
Communication With Server TCP/IP
Other SD Card
Wireless LAN(Wi-Fi) Optional
Wiegand OUT O
RS232 O
RS485 O
Wiegand IN O
Display LCD 5"Color Touch
Backlight O
Embedded Camera Dual
Card 125khz-EM O
HID Prox O
HID iclass O
13.56MHz Smart Card O
Keypad Touch Screen
Function keys SOFT
Door Phone Volp
FP Sensor Platen Area 15.5 X 19 mm
Resolution 500 dpi
Dimension (W) X (H) X (D) mm 149.5 X 208.5 X56.4
FRR /FAR 0.1% / 0.0001%
Operating Temperature -20 ~ 60℃
모바일 출입카드 (NFC/BLE) 지원 Mobile Phone 사양 iPhone : iOS 10.0 이상 / BLE4.2 이상 지원 단말기
Android : Android 6.0 이상 / NFC 지원 단말기
보안 / 암호화 Azure Key Vault / AES-128
인증거리 10cm 이하 (모바일폰마다 인증거리는 변동될 수 있습니다.)
Server Platform On-Premise (구축형) / Cloud (클라우드형)
